Manway Gaskets

Gaskets to fit AAR-1, UTC-1, TRN-1 Manways

M Barnwell Services Manway Gaskets incorporates raised sealing features for a more compact seal. During adverse conditions and multiple cycles, the seal will remain tight, reliable and reusable. The single sized gasket will fit the majority of Manways simplifying inventory and selection requirements.

Manway Gaskets are specifically designed to help the installation process and are manufactured from 100% pure PTFE. With easy installation, the Manway Gasket will compress and conform to allow exceptional load retention and will remain tight during excessive vibration. The unique raised sealing features allows the Manway Gasket to perform under the limited bolt load and the precise seating surface nozzle.

Features and benefits of an M Barnwell Services Manway Gasket:

  • Min Temp  -450°F  / -268°C
  • Max Temp 500°F / 260°C
  • High crush resistance and limitless shelf life
  • Suitable for heavy vibration, thermal cycling, and over-torquing
  • Offers excellent long term bolt load retention and creep resistance
  • Highly compressible for low load sealing on less than ideal flange surfaces

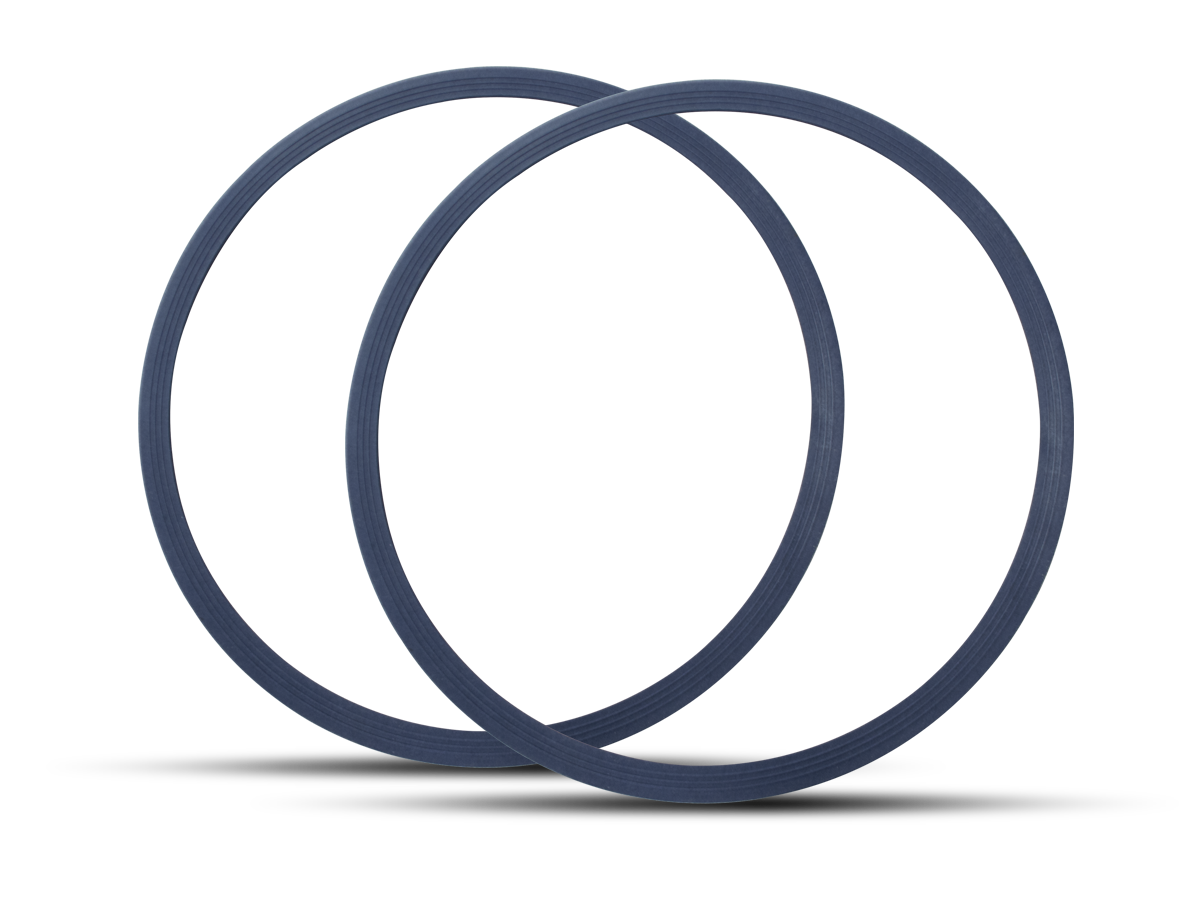

Manway Gasket 2 - M Barnwell ServicesManway Gasket - M Barnwell Services

Manway gaskets can be used in a range of applications for the Pharmaceutical, and Food and Beverage industries.

If you would like more information about our range, contact a member of the team.


100% Microcellular PTFE with rigid PTFE center layer
Min. Temperature: -450°F / -268°C
Max. Temperature: 500°F / 260°C
Creep Relaxation (ASTM F38) %: 15
Compressibility (ASTM F36) %: 60-70
Recovery (ASTM F36) %: >15

E & OE.
