Spiral Wound Gaskets

M Barnwell Services is one of the UK’s leading stockist, distributor and manufacturer of gaskets. Spiral wound gaskets are a trusted sealing solution in the oil & gas, petrochemical, energy and process industries.

What is a spiral wound gasket?

Spiral wound gaskets are metal strips wound with a soft filler material, they are constructed by winding together the metal strip and filler material in alternating layers. The filler acts as the main seal and the metal gives it the structural strength and spring like reinforcement making it robust and easy to install. This construction allows them to handle:

• • • High pressures
    • High temperatures
    • • Vibration and flange movement
      • Fluctuating operating conditions

  Gasket Types

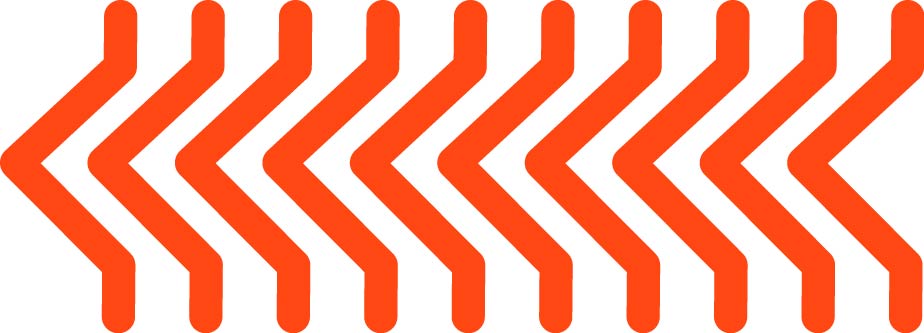

  Type R



  A basic element only gasket with no solid inner or outer rings which can be used with flat face and tongue and groove flanges.

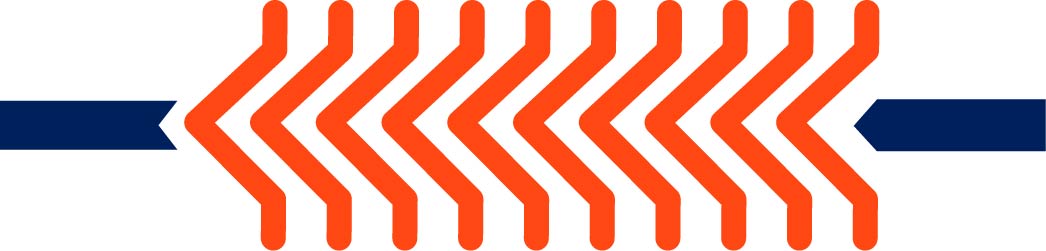

  Type CRIR



  A spiral wound gasket consisting of metallic winding and soft filler with inner and outer rings to improve compression control and blow out resistance.

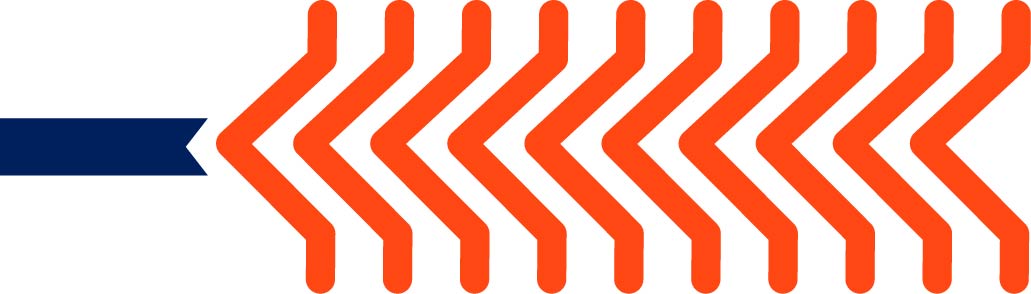

  Type CR



  A metallic winding and soft filler with only an outer ring ideal for use with flat face and raised flanges

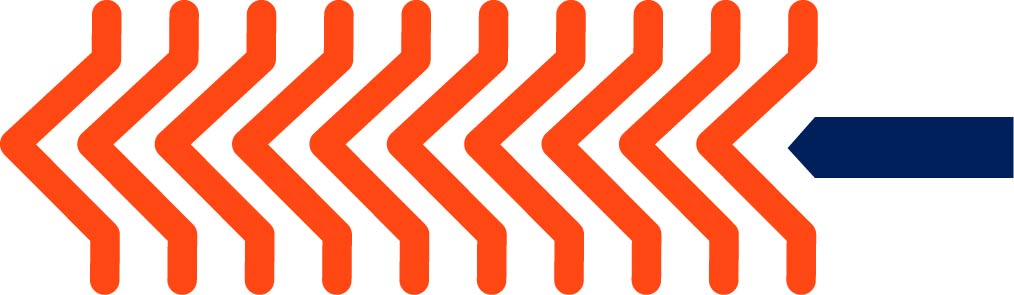

  Type RIR



  Sealing element consisting of a metallic winding and soft filler with an inner ring only made to suit male to female flanges.

  Type RHD

  A spiral sealing element wound with high density for use in high-pressure pumps, high pressure valves and gas applications. They are also low emission tested to ensure they maintain a tight seal fluctuating pressure and temperature conditions.

• Type HTX

  A high-performance seal designed for heat exchanger applications. They are manufactured with thin outer windings to create a large diameter for narrow heat exchange.

• Gasket Shapes

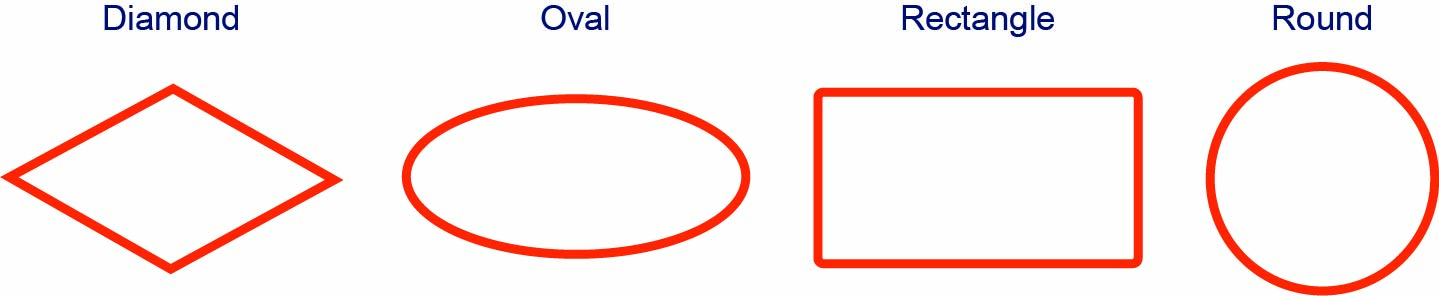

  While most spiral wound gaskets are round, they can be made in a number of different shapes including:





  Materials

  Material choices depend on the temperature, pressure and media that the spiral wound gasket will be needed for the most common options are:

  Metal Strip Materials

  • • • • Stainless Steel
        • Inconel
        • Titanium
        • Duplex

  Soft Filler Materials

  • • • • Graphite
        • PTFE

Applications

Our spiral wound gaskets are used across a wide range of demanding environments including:

• • • • Petrochemical
      • Nuclear energy
      • Pumps, valves and piping
      • High Pressure and high temperature processes

For more information, please get in contact with a member of the team. This information has been gathered from our manufacturing partners. E&OE.
