9010 EVSP® Valve Packing Set

High-performance sealing for hydrogen, hydrocarbons, and demanding media.

M Barnwell Service’s range of The 9010 EVSP ® delivers best-in-class fugitive emissions control for valves operating in hydrogen, hydrocarbon liquids and gases, CO₂, and other challenging applications. Built around a patented cup-and-cone design, this versatile packing set achieves a precise, consistent seal that reduces installation variability while ensuring reliable long-term performance. Its low-friction profile not only supports smooth valve operation, but also reduces energy consumption in automated systems.

Designed to perform across a wide operating window from cryogenic temperatures through to 500°F the 9010 EVSP ® combines chemically inert, high-purity materials with proven sealing technology. The result is a robust, emissions-compliant solution trusted across critical industries including Hydrogen, Oil and Gas, Energy, and Chemical Processing.

9010 evsp

Specifications

  • Construction – Patented cup-and-cone design with high-purity, chemically inert materials
  • Temperature – Cryogenic service to 500°F (260°C)
  • Media compatibility – Hydrogen, hydrocarbons, CO₂, lubricating oils, ammonia, steam, cryogenic media, aromatic solvents, alcohol
  • Certification – ISO 15848-1 tested at 200°C and ANSI Class 300 pressure ratings for proven fugitive emissions control

Applications

  • Control valves
  • Hydrogen service valves
  • Cryogenic valves
  • High-temperature valves
  • Emission control systems

For more information on the 9010 EVSP ® press release click here.

E&EO This information has been gathered by our manufacturing partners. For more information contact us

Sizes

CS 0.126 inch/3.20mm
Inside Diameter 0.374inch/9.50mm
Outside Diameter: 0.625inch/15.88mm
Overall Stack Height: .625inch/15.88mm
Number of Rings per set: 5

Styles

9010 EVSP®, 9010 EVSP® DT (dry), 9010 EVSP® LE (low emissions)

Materials

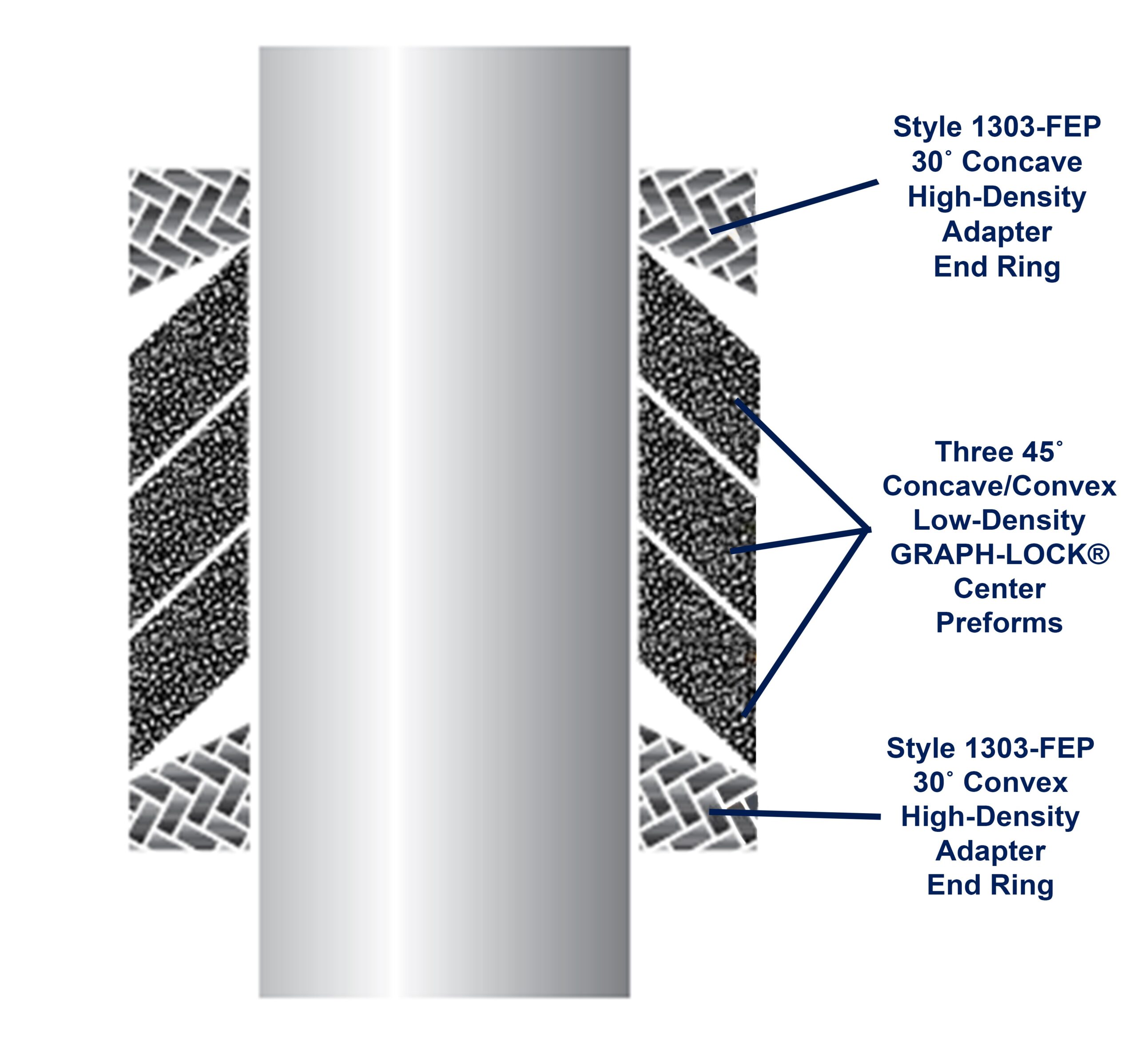

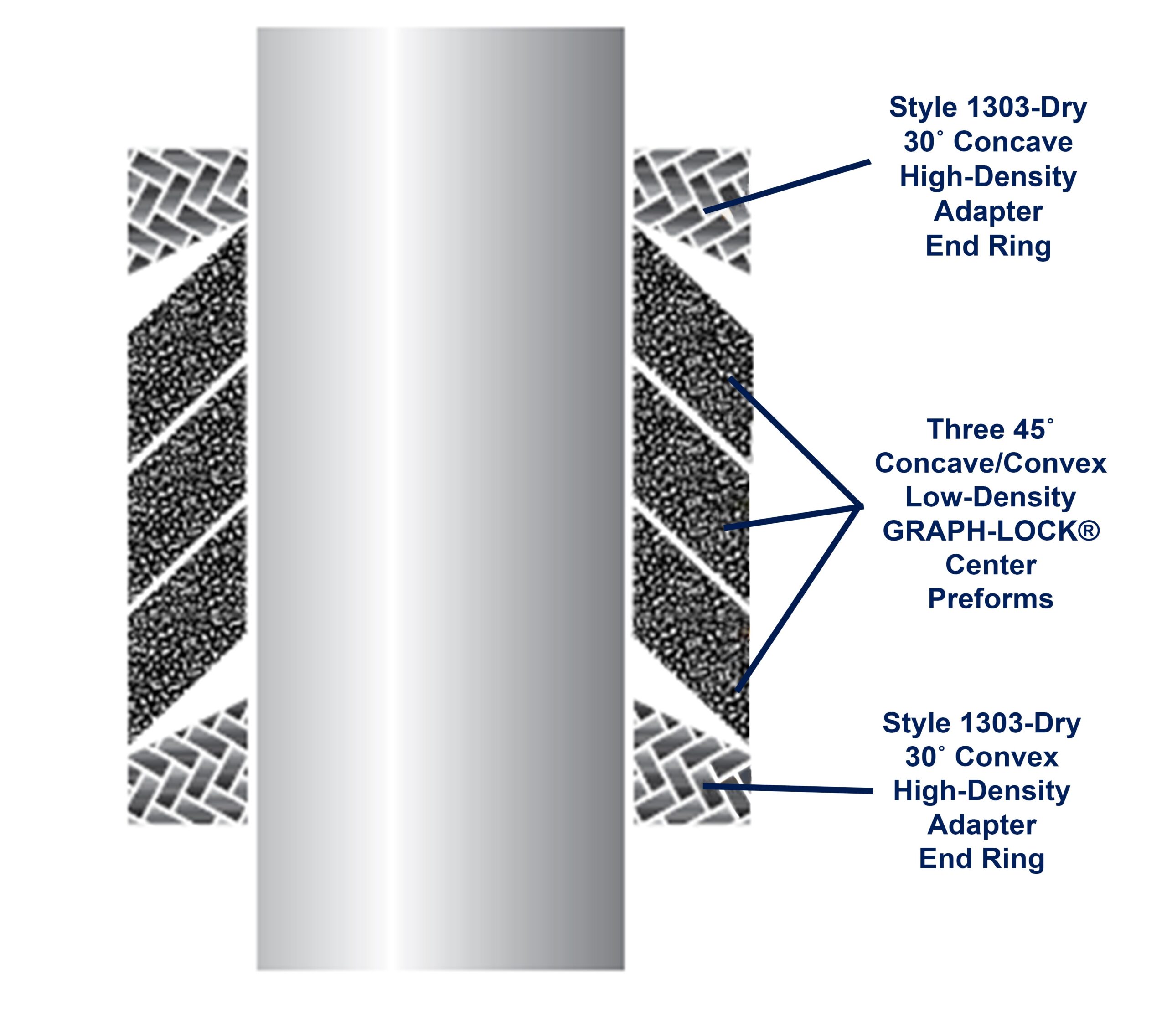

1303FEP (9010 EVSP®LE), 1303DRY (9010 EVSP®DT),

Standards

REACH Compliant, RoHS Compliant, Fire Safe, API 607 Compliant, API 622 Compliant, Fire tested to API-589,
