Gylon Bio-Lok®

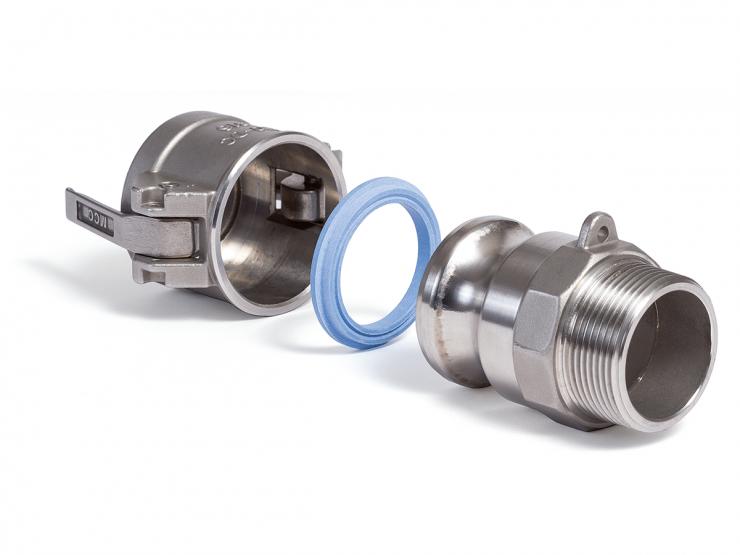

Specialist Gaskets for Camlock couplings according to DIN EN 14420-7 and US-MIL-norm (MIL-C-27487).

M Barnwell Services offer the full range of Garlock’s GYLON BIO-LOK® gaskets. GYLON BIO-LOK® is made of highly compressible and flexible material GYLON® Blue Style 3504 that helps provide high stability and a solid seal when assembled.

Features and Benefits of a GYLON BIO-LOK® gasket

  • 100 % GYLON® – Higher material safety, No core material which could contaminate the processed media
  • One seal for all chemicals and temperatures – Reduces stock and risk of improper installation
  • Chemical resistant – Almost universal chemical resistance while meeting Food & Pharma standards
  • Stable dimensions – No extrusion, no cold flow, high recovery.  Centred by an outer ring, a higher flexibility for open/close processes
  • Temperature resistant – Operating between -346°F (-210°C) to +500°F (260°C)

Gylon Bio-Lok

For more information on our range visit our Hygienic and Petrochemical pages, or contact a member of the team today.

Other Garlock products we supply include GYLON BIO-Line®, Compression Packing and PS Seals®.

Temperature Range

-346°F (-210°C) to +500°F (260°C)

Standards & Certifications

FDA compliant
NSF 61 Standard
EC 1935/2004*
EC 10/2011
USP Class VI Chapter 87 & 88
USP Part 31, 281 & 661
BAM tested
KTW approved
Phthalate and Softener free

*Please note: As the product is also used within processes and industries, which are not rated to EC 1935/2004, please indicate traceability documentation needs at the time of order.
