IDF Gaskets

IDF Gaskets – Hygienic Connector Gaskets

M Barnwell Services is one of the UK’s leading stockist and distributor of hygienic connector gaskets. Available in a variety of styles/types our IDF Gaskets are for the use of IDF (International Dairy Federation) pipe fittings.

IDF gaskets come in a range of elastomers materials, including  Perfluoroelastomer (FFKM)Nitrile (NBR)Hydrogenated Nitrile (HNBR)Viton® (FKM/FPM)Ethylene Propylene (EPDM) and Silicone (VMQ). All elastomers have been certified to 3-A SanitaryFDA, BS4825-4:2009 and EC1935/2004 & EC2023/2006 Regulations. Metal and X-ray detectable rubbers are also available. Full documentation will be provided.

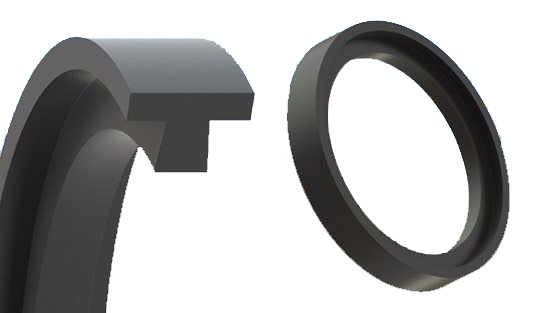

IDF Gaskets

IDF gaskets are specifically designed to meet the critical demands of Food, CPV, Brewing and BottlingBiotechnology and Pharmaceutical industries. Their features include low maintenance, longer lifespan, high performance and are user-friendly.

Other pipe fitting sealing products include DIN11851 Seals, Hyclamp™ Sanitary Gaskets, and RJT O Ring seals.

The table below shows a list of common IDF gasket seal sizes:

IDF Gaskets

If you would like more information about our range, download our catalogue, visit the Seal Maker Page or contact a member of the team.

E & OE.


1 to 4 inch as standard. Other sizes are available


Perfluoroelastomer (FFKM), Nitrile (NBR), Hydrogenated Nitrile (HNBR), Viton® (FKM/FPM), Ethylene Propylene (EPDM) and Silicone (VMQ)


3-A Sanitary, FDA, BS4825-4:2009, EC1935/2004 & EC2023/2006
